MiB Micro-Bolometer
The Texense® fast micro-bolometer (e-Shutter function) is the lightest tool of external tyre temperature measurement available with accuracy of <1% FS. It is available with varying lens options to give a FOV of 73 & 120° and the data is output via CAN.
Product Description
The revolutionary micro bolometer based thermal camera system is the most accurate form of external tyre temperature measurement available on the market today with accuracy of <1% FS over 240 pixels. It is available with varying lens options to give a Field of View (FOV) of 73 or 120° and the data is output via CAN. The temperature data can be configured to either 4x60 pixels or 2x70 pixels (other pixel matrix available on request).
NEW! MIB-S-P, an IP67 waterproof version, is now available.
- Micro Bolometer thermal camera
- Multispot digital IR temperature camera
- Up to 240 pixels for wide surface temperature (tyre, radiator, etc.)
- Fast 100Hz sampling
- 73° or 120° FOV options
- Most accurate embedded system (<1%FS)
- User configurable CAN output
- Range up to 200°C

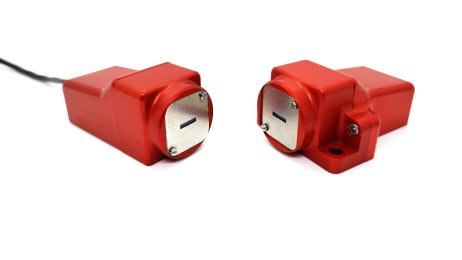

- 2 housing designs: Straight or Elbow
- MIB-S-P: IP67 waterproof version
